[ixpmanager] MRTG Configuration with IXP-Manager

[Ajai Kumar]

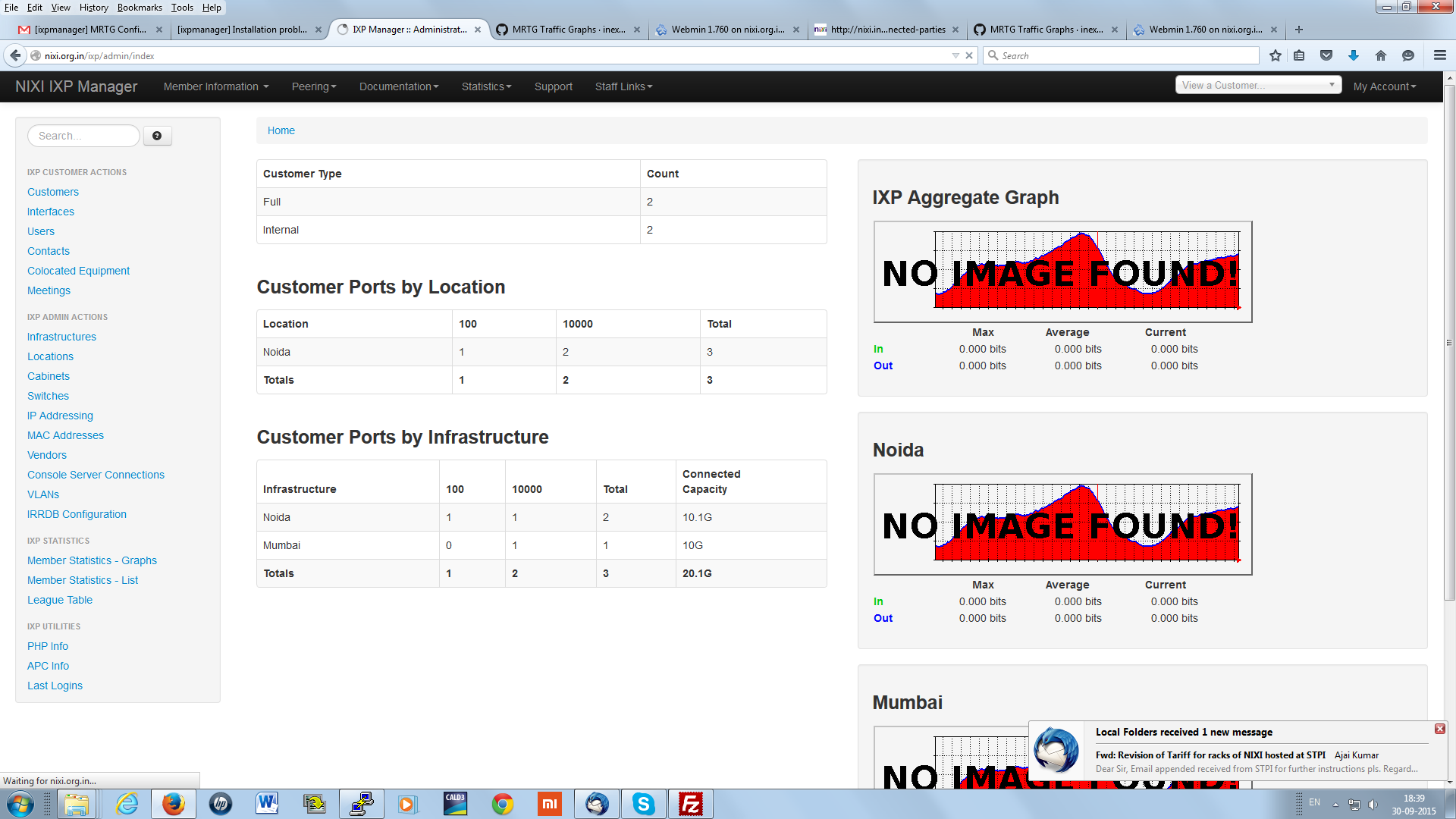

There is no error.However not able to see graphs.Pls refer print screen
attached.

It seems one more issue on display of Customer Ports by Location. I have
added two ports in one ISP at two locations.However it is not reflecting.
Regards,
Ajai kumar

On 30 September 2015 at 18:07, Mike Hammett <ixp-manager at ics-il.net> wrote:

> FINALLY I GET TO HELP SOMEONE!
>
>
> That's because you chose multi-IXP mode and well, haven't told it which
> IXP you're referring to. You'll need to append the command with "-p ixp=1".
>
>
>
> -----
> Mike Hammett
> Intelligent Computing Solutions
> http://www.ics-il.com
>
> <https://www.facebook.com/ICSIL>
> <https://plus.google.com/+IntelligentComputingSolutionsDeKalb>
> <https://www.linkedin.com/company/intelligent-computing-solutions>
> <https://twitter.com/ICSIL>
>
> Midwest Internet Exchange
> http://www.midwest-ix.com
>
> <https://www.facebook.com/mdwestix>
> <https://www.linkedin.com/company/midwest-internet-exchange>
> <https://twitter.com/mdwestix>
> ------------------------------
> *From: *"Ajai Kumar" <joinajay1 at gmail.com>
> *To: *"INEX IXP Manager Mailing List" <ixpmanager at inex.ie>
> *Sent: *Wednesday, September 30, 2015 5:04:13 AM
> *Subject: *Re: [ixpmanager] MRTG Configuration with IXP-Manager
>
>
> Hi,
> Now I am getting the below error while running the command
> /usr/local/ixp/bin/ixptool.php -a statistics-cli.gen-mrtg-conf
>
> ERROR: Invalid or no IXP specified.
>
> Where I can find out which IXP referred here.
> Regards,
> Ajai Kumar
>
> On 29 September 2015 at 18:25, chandra prakash <
> chandra.mr.prakash at gmail.com> wrote:
>
>> Hi,
>>
>> We already follow this instruction but it give us some warning
>>
>> [root at nixi ~]# /usr/local/ixp/bin/ixptool.php -a
>> statistics-cli.gen-mrtg-conf
>> PHP Notice:  Undefined index: bits in
>> /usr/local/ixp/var/templates_c/25549ef3713b8e6ed5a7749cc70d38d4fae45cb3.file.aggregates.cfg.php
>> on line 84
>> PHP Warning:  implode(): Invalid arguments passed in
>> /usr/local/ixp/var/templates_c/25549ef3713b8e6ed5a7749cc70d38d4fae45cb3.file.aggregates.cfg.php
>> on line 84
>> PHP Notice:  Undefined index: pkts in
>> /usr/local/ixp/var/templates_c/25549ef3713b8e6ed5a7749cc70d38d4fae45cb3.file.aggregates.cfg.php
>> on line 84
>> PHP Warning:  implode(): Invalid arguments passed in
>> /usr/local/ixp/var/templates_c/25549ef3713b8e6ed5a7749cc70d38d4fae45cb3.file.aggregates.cfg.php
>> on line 84
>>
>> So we created mrtg graph using below mentioned command
>>
>>
>>
>> *env LANG=C /usr/bin/mrtg  /etc/mrtg/mrtg.cfg*
>>
>>
>>
>> *And we are able to see graph only for aggregated (customer grapgs are missing) in below mentioned directory*
>>
>>
>> *Mrtg directory :- /srv/mrtg*
>>
>>
>>
>> *mrtg config file:- /etc/mrtg/mrtg.cfg*
>>
>>
>> *Regards,*
>>
>>
>> *Prakash*
>>
>>
>>
>>
>>
>>
>>
>> On Tue, Sep 29, 2015 at 6:17 PM, Barry O'Donovan <barry.odonovan at inex.ie>
>> wrote:
>>
>>>
>>>
>>> On 29/09/2015 13:43, chandra prakash wrote:
>>>
>>>> How to integrate MRTG under IXP-Manager in centos ?
>>>>
>>>
>>> There's fairly comprehensive documentation at:
>>>
>>> https://github.com/inex/IXP-Manager/wiki/MRTG---Traffic-Graphs
>>>
>>>
>>> Not to sound like a broken record, but while CentOS will work fine, the
>>> recommended Linux distribution is the latest Ubuntu LTS and the
>>> documentation is geared towards this.
>>>
>>>  - Barry
>>>
>>>
>>>
