[ixpmanager] Route Server Configuration

[Levi Pederson]

Nick,

Ah that makes much more sense as I was wondering about overlapping peering
vlans.

What part do I mouse over?

Thank you,

*Levi Pederson*
Mankato Networks LLC
cell | 612.481.0769
work | 612.787.7392
levipederson at mankatonetworks.net


On Fri, Oct 28, 2016 at 9:23 AM, Nick Hilliard <nick at inex.ie> wrote:

> Levi Pederson wrote:
> > ixpadmin at ixp:/usr/local/ixp/bin$ sudo ./ixptool.php -a
> > router-cli.gen-server-conf -p vlanid=235,target-bird,proto=4
> > --config==/home/ixpadmin/auto-rs1-v4-bird.conf
> > [sudo] password for ixpadmin:
> > PHP Notice:  Undefined offset: 1 in /usr/local/ixp/bin/ixptool.php on
> > line 143
> > ERROR: Invalid or no VLAN ID specified.
> > ixpadmin at ixp:/usr/local/ixp/bin$
>
> Hi Levi,
>
> There are two things here which are confusing: vlanid and the vlan
> number.  vlanid is the sql row ID of the vlan entry in the database and
> probably won't match the vlan number configured on your switch.  You can
> check out what vlanid you should use here by mousing over the edit field
> in the VLANs list:
>
> https://your.ixp/ixp/vlan/list
>
> This is not obvious and needs to be made a lot more obvious in the
> documentation.
>
> Incidentally, the reason we don't use the vlan tag number of the IXP
> switches is that some IXPs have multiple ixp infrastructures with
> overlapping VLAN IDs.
>
> Nick
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> https://www.inex.ie/mailman/listinfo/ixpmanager
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20161028/d13e37de/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

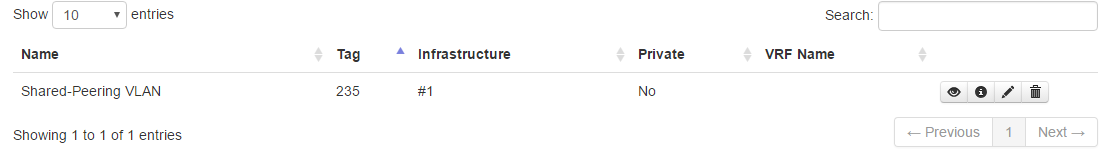

Name: shared-peering-VLAN.PNG
Type: image/png
Size: 12420 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20161028/d13e37de/attachment-0001.png>
