[ixpmanager] Issue in Discovering MAC addresses with the script
Ahmed Al-Saruri
ahmed.alsaruri at x3me.net
Fri Aug 2 15:14:01 IST 2019
Hello,
Thank you very much for your quick response.
The switchport is the same for all interfaces which is:
OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
This is a bug and being fixed by vendor. I am not sure if it is the reason
for my issue here or not.
Regarding the switchhostname I have changed the name only when copied to
you to hide the real name. There is no space in it.

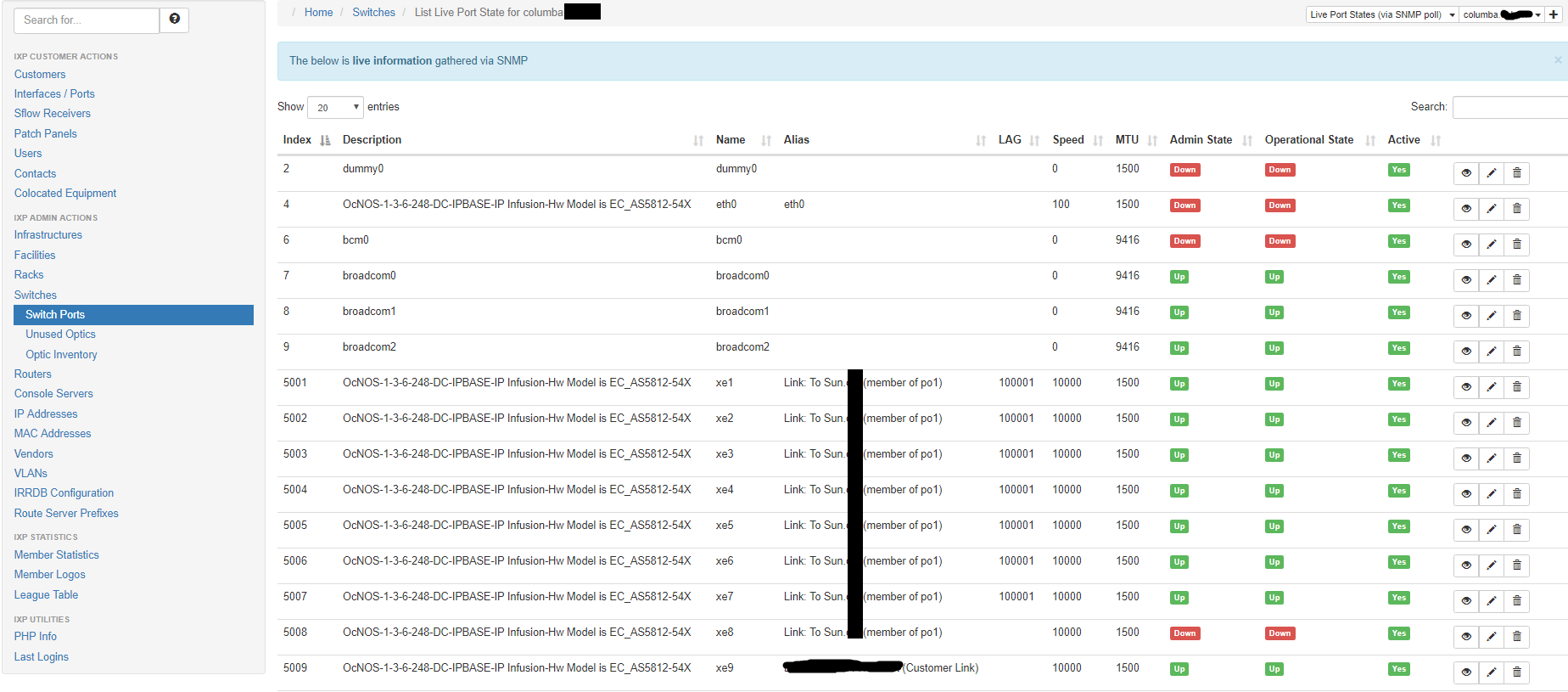

Please find the screen shot you have requested and the snmpwalk attached. I
have covered part of the names in the screenshot for confidentiality
reasons.
[image: image.png]
On Fri, Aug 2, 2019 at 4:36 PM Nick Hilliard (INEX) <nick at inex.ie> wrote:
> Hi Ahmed,
>
> That output doesn't look ok. Can you change your switch configuration so
> that the hostname (and name) of the switch no longer have spaces in them?
> At the moment, the hostname is:
>
> 'switchhostname' => ' EdgeCore ',
>
> The second thing is that the switch port name has been set to:
>
> 'switchport' => 'OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is
> EC_AS5812-54X',
>
> This looks very wrong - it should be a switch port name, e.g. "xe9" or
> something.
>
> Can you post the output of snmpwalk for the following OID:
>
> .1.3.6.1.2.1.2.2.1.2
>
> Also, can you go into the switch list view, and click on "Live Port
> States" under SNMP Actions, and then post a screen shot of what it's
> producing? This is to see what IXP Manager is picking up for the SNMP poll.
>
> Nick
>
> Ahmed Al-Saruri <ahmed.alsaruri at x3me.net>
> 2 August 2019 at 13:37
> Hello Team,
>
> I have an issue detecting MAC addresses with the script "
> update-l2database.pl" for Edge Core switch running on IP infusion OcNos.
>
> Software Product: OcNOS, Version: 1.3.6.248
> Hardware Model: Cumulus Networks 5812-54X-O-AC-F
> IXP Manager V4.9.2
>
> Currently the switch has only one interface connected as peer and has the
> integer value 5009 from the snmpwalk.
> SNMPv2-SMI::mib-2.17.7.1.2.2.1.2.3210.224.151.150.72.79.187 = INTEGER: 5009
>
> Attached are the results found from the script and snmpwalk.
>
>
> Your assistance will be highly appreciated.
> --
>
> Warm Regards,
> Ahmed Alsaruri
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> Unsubscribe or change options here:
> https://www.inex.ie/mailman/listinfo/ixpmanager
>
>
>
--
Warm Regards,
Ahmed Alsaruri
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20190802/0250a46c/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 173349 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20190802/0250a46c/attachment-0001.png>
-------------- next part --------------
.1.3.6.1.2.1.2.2.1.2
IF-MIB::ifDescr.1 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.4 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5001 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5002 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5003 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5004 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5005 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5006 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5007 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5008 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.5009 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10010 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10011 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10012 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10013 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10014 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10015 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10016 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10017 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10018 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10019 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10020 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10021 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10022 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10023 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10024 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10025 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10026 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10027 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10028 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10029 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10030 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10031 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10032 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10033 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10034 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10035 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10036 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10037 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10038 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10039 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10040 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10041 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10042 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10043 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10044 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10045 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10046 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10047 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10048 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10049 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10050 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10051 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10052 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10053 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10054 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10055 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10056 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10057 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10058 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10059 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10060 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10061 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10062 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10063 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10064 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10065 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10066 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10067 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10068 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10069 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10070 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10071 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.10072 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.14098 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.15002 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.25001 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.28210 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
IF-MIB::ifDescr.100001 = STRING: OcNOS-1-3-6-248-DC-IPBASE-IP Infusion-Hw Model is EC_AS5812-54X
