[ixpmanager] Fw:peer-to-peer statistics | sFlow

[Nick Hilliard (INEX)]

You need to put all your customers into the same VLAN.

Nick
> jennifer xue <mailto:yabuqi_0905 at 163.com>
> 24 May 2019 at 08:17
> hi Nick，
>
> the output of sflowtool is：
> >> # sflowtool -4 -p 6343 -l |grep 249
> >>
> FLOW,106.48.32.41,967,839,883fd3695800,9c741ae53100,0x0800,2009,249,103.237.184.117,101.251.143.60,6,0x00,53,27994,80,0x10,74,52,2048

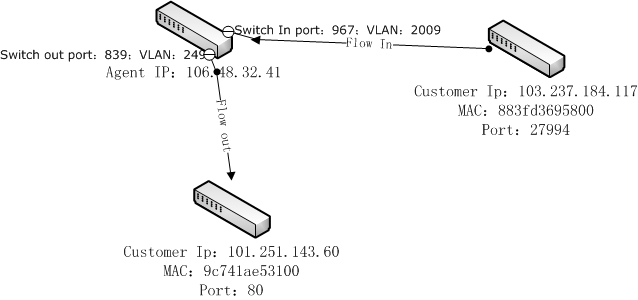

> And my  network demo is like that：
>
>
>
>
> there are two vlan number in one Switch.
>
> At 2019-05-23 22:22:53, "Nick Hilliard (INEX)" <nick at inex.ie> wrote:
> >jennifer xue wrote on 23/05/2019 06:51:
> >> And the output of VLAN249 is the follow：
> >> # sflowtool -4 -p 6343 -l |grep 249
> >>
> FLOW,106.48.32.41,967,839,883fd3695800,9c741ae53100,0x0800,2009,249,103.237.184.117,101.251.143.60,6,0x00,53,27994,80,0x10,74,52,2048
> >>
> FLOW,106.48.32.41,967,841,883fd3695800,9c741ae53100,0x0800,2009,249,103.237.184.70,101.251.143.69,6,0x00,52,42964,80,0x10,74,52,2048
> >>
> >> the configuration is like :
> >> VLAN249,ip is 106.48.35.249,mac is 9c:74:1a:e5:31:00.
> >
> >those flow records show that the source vlan is 2009 and the destination
> >vlan is 249. This is what's confusing the RRD collection script, which
> >expects the src and dst vlan to be 249. Are you doing vlan rewriting
> >on your switch?
> >
> >Nick
>
>
> ------------------------------------------------------------------------

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20190524/82ffe045/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 22830 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20190524/82ffe045/attachment-0001.png>
