[ixpmanager] Hello / design for Ouest.Network @ Nantes, FR

[Antoine Nivard - O.N]

Hello all,

(Ouest.Network)We are ready to deploy our hardware but I need your
feedback and experience.

We start with 1 site with 4 members, we will expend the first quarter of
2021 to another site/POP with 4 other members.

We will start from scratch and I would like use IXPmanager.

We need 1 VM with IXPmanager but you explain 2 "route server"
https://docs.ixpmanager.org/features/route-servers/

Then how many route server and route collector, we need ?
Do we deploy VM "BGP router" ? but only "bird" ?
How we manage them ? https://docs.ixpmanager.org/features/routers/ ?

Thank you for your help,

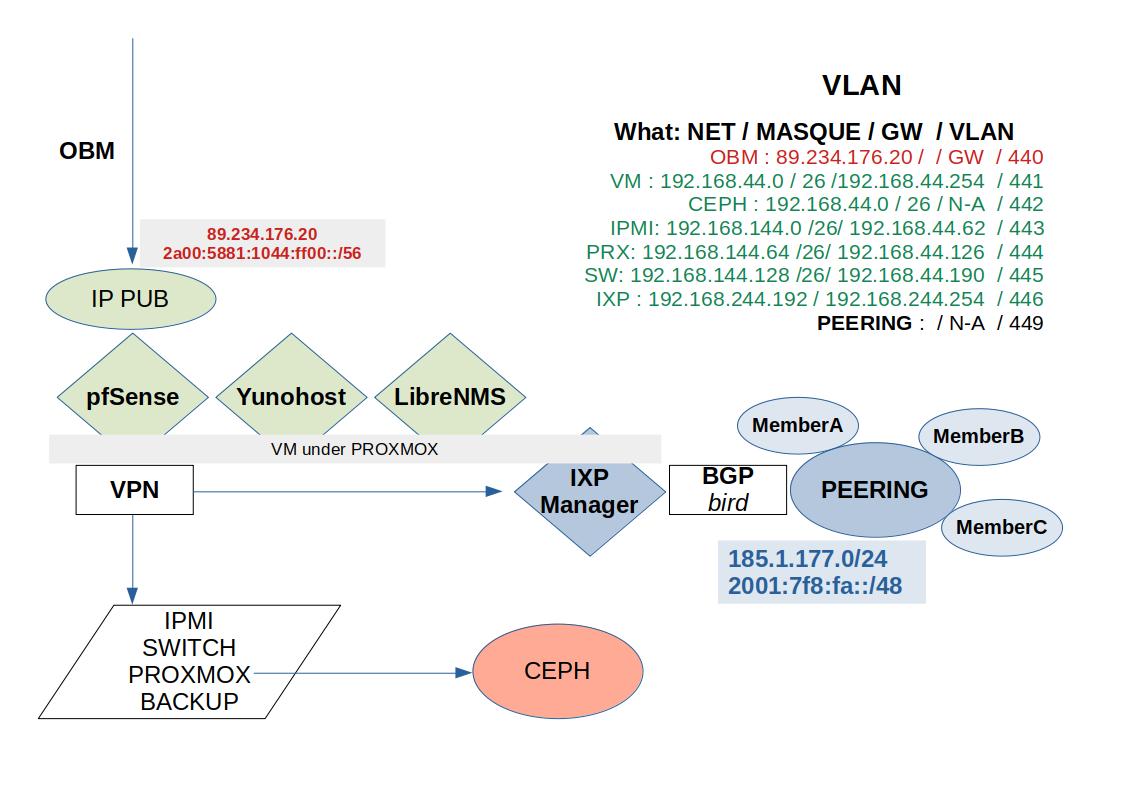

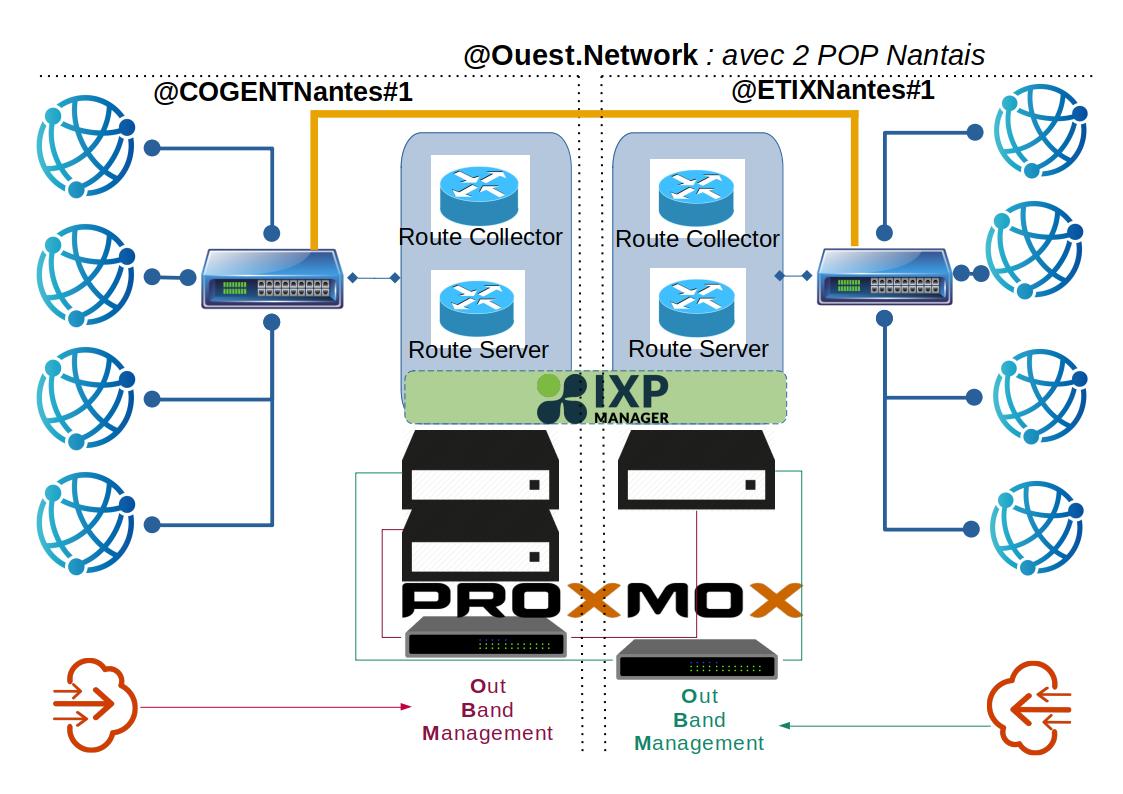

I attach some schema of our ideas :

--
Best regards,

                Antoine Nivard

Business Developper de https://Ouest.Network - Vous rapprocher !
https://www.linkedin.com/company/ouestnetwork/

Tél: 06 52 57 79 69 - antoine.nivard at ouest.network

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Architecture-ON-23Oct20-1.jpg
Type: image/jpeg
Size: 105462 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20201026/bcac2ba5/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Architecture-ON-23Oct20-2.jpg
Type: image/jpeg
Size: 81715 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20201026/bcac2ba5/attachment-0003.jpg>
