[ixpmanager] "HTTP/1.1 401 Unauthorized" And "content is not defined.?==?utf-8?q? "
bbalaawi@mtit.gov.ps
bbalaawi at mtit.gov.ps
Sat Sep 19 15:27:32 IST 2020
Hi support

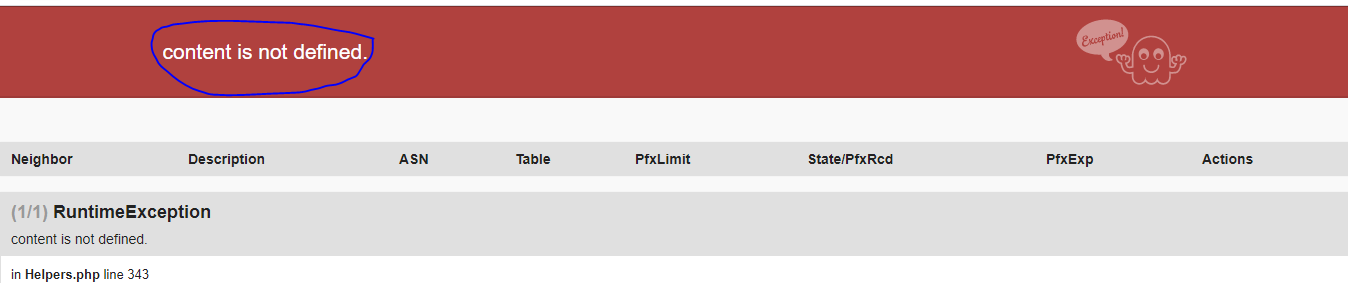

At the first my birdeys syetem is operatinal with fit output operation , but my ixp-manager application is not connect with Birdeys , so after some debuging at my system facing some error like "HTTP/1.1 401 Unauthorized" And "content is not defined. " so if please can help me to focus about soulution to solve it !! so you can following debug :
1. root at bird:~# mysql -u ixpmanager "-pixpmanager" ixpmanager
mysql> SELECT * FROM routers WHERE id = 1\G
*************************** 1. row ***************************
id: 1
vlan_id: 1
handle: rs1-lan1-ipv4
protocol: 4
type: 1
name: IXP Route Server #1
shortname: RS1 - VLAN10 - IPv4
router_id: 185.153.160.203
peering_ip: 185.153.160.203
asn: 61274
software: 6
software_version: 2.0.7
operating_system: Ubunitu Linux
operating_system_version: 20.04
mgmt_host: 192.168.1.203
api: http://rs1-lan1-ipv4/api
api_type: 1
lg_access: 0
quarantine: 0
bgp_lc: 1
rpki: 1
rfc1997_passthru: 0
template: api/v4/router/server/bird2/standard
skip_md5: 1
last_updated: 2020-09-18 15:14:35
1 row in set (0.00 sec)
2. root at bird:~# dig +short rs1-lan1-ipv4.ps-ix.ps
192.168.1.203
3. root at bird:~# ping rs1-lan1-ipv4.ps-ix.ps -c 1
PING rs1-lan1-ipv4.ps-ix.ps (192.168.1.203) 56(84) bytes of data.
64 bytes from bird (192.168.1.203): icmp_seq=1 ttl=64 time=0.082 ms
--- rs1-lan1-ipv4.ps-ix.ps ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.082/0.082/0.082/0.000 ms
root at bird:~#
4. root at bird:~# curl -v http://rs1-lan1-ipv4.ps-ix.ps/api/status
* Trying 192.168.1.203:80...
* TCP_NODELAY set
* Connected to rs1-lan1-ipv4.ps-ix.ps (192.168.1.203) port 80 (#0)
> GET /api/status HTTP/1.1
> Host: rs1-lan1-ipv4.ps-ix.ps
> User-Agent: curl/7.68.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Cache-Control: no-cache
< Content-Type: application/json
< Date: Fri, 18 Sep 2020 21:31:25 GMT
< Content-Length: 288
< Server: lighttpd/1.4.55
<
* Connection #0 to host rs1-lan1-ipv4.ps-ix.ps left intact
{"api":{"from_cache":false,"version":"1.2.2","max_routes":1000},"status":{"version":"2.0.7","router_id":"185.153.160.203","server_time":"2020-09-18T21:31:25+00:00","last_reboot":"2020-09-18T12:13:42+00:00","last_reconfig":"2020-09-18T12:14:35+00:00","message":"Daemon is up and running"}}
root at bird:~#
5.
root at bird:~# cat /srv/birdseye/version.php
<?php
$_ENV['BIRDSEYE_API_VERSION'] = '1.2.2';
root at bird:~#
6. root at bird:~# ls -la /var/run/bird
total 0
drwxrwxr-x 2 bird bird 80 Sep 18 12:13 .
drwxr-xr-x 29 root root 900 Sep 18 17:22 ..
srw-rw---- 1 bird bird 0 Sep 18 10:52 bird.ctl
srw-rw---- 1 root root 0 Sep 18 12:13 rs1-lan1-ipv4.ctl
7.
root at bird:~# ls -la /srv/birdseye/.env
-rw-r--r-- 1 root root 2974 Sep 16 12:32 /srv/birdseye/.env
8.
root at bird:~# cat /srv/birdseye/.env | egrep -v '(^#)|(^\s*$)'
BIRDC="/usr/bin/sudo /srv/birdseye/bin/birdc -2 -s /var/run/bird/rs1-lan1-ipv4.ctl"
CACHE_DRIVER=file
LOOKING_GLASS_ENABLED=false
LOOKING_GLASS_TITLE="Bird's Eye Looking Glass - API V{!VERSION!}"
root at bird:~#
9.
root at bird:~# cat /srv/birdseye/.env | egrep -v '(^#)|(^\s*$)'
BIRDC="/usr/bin/sudo /srv/birdseye/bin/birdc -2 -s /var/run/bird/rs1-lan1-ipv4.ctl"
CACHE_DRIVER=file
LOOKING_GLASS_ENABLED=false
LOOKING_GLASS_TITLE="Bird's Eye Looking Glass - API V{!VERSION!}"
root at bird:~#
10.
root at bird:~# /usr/sbin/birdc -s /var/run/bird/rs1-lan1-ipv4.ctl show status
BIRD 2.0.7 ready.
BIRD 2.0.7
Router ID is 185.153.160.203
Current server time is 2020-09-18 21:44:41
Last reboot on 2020-09-18 12:13:42
Last reconfiguration on 2020-09-18 12:14:35
Daemon is up and running
root at bird:~#
10.
root at bird:~# cat /etc/sudoers /etc/sudoers.d/* | grep birdseye
www-data ALL=(ALL) NOPASSWD: /srv/birdseye/bin/birdc
root at bird:~#
11.
root at bird:~# /srv/birdseye/bin/birdc -4 -s /var/run/bird/rs1-lan1-ipv4.ctl show status
BIRD 2.0.7 ready.
Access restricted
BIRD 2.0.7
Router ID is 185.153.160.203
Current server time is 2020-09-18 21:46:46
Last reboot on 2020-09-18 12:13:42
Last reconfiguration on 2020-09-18 12:14:35
Daemon is up and running
root at bird:~#
12.
root at bird:~# netstat -lpn | grep lighttpd
tcp 0 0 192.168.1.203:80 0.0.0.0:* LISTEN 13868/lighttpd
unix 2 [ ACC ] STREAM LISTENING 94078 13873/php-cgi /var/run/lighttpd/php.socket-0
root at bird:~#
13.
root at bird:/srv/birdseye# fping rs1-lan1-ipv4.ps-ix.ps
rs1-lan1-ipv4.ps-ix.ps is alive
14.
root at ixpmanager:/srv/ixpmanager# cat .env | egrep -v '(^#|^\s*$|^DB_|^APP_KEY|^HELPDESK|^IDENTITY|^MAIL_|^IXP_API_RIR_PASSWORD|^IXP_API_PEERING_DB_)'
APP_ENV="development"
APP_DEBUG=true
APP_URL="http://ixp.ps-ix.ps"
APP_TIMEZONE="Asia/Gaza"
APP_LOG="single"
APP_LOG_LEVEL=debug
IXP_RESELLER_ENABLED=false
IXP_AS112_UI_ACTIVE=true
IXP_FE_FRONTEND_DISABLED_LOGO=false
IXP_FE_FRONTEND_DISABLED_LOOKING_GLASS=false
IXP_FE_FRONTEND_DISABLED_FILTERED_PREFIXES=false
MAIL_DRIVER="smtp"
MAIL_HOST="smtp.gmail.com"
MAIL_USERNAME="saifbasilyazan at gmail.com"
MAIL_PASSWORD="sbzr pswy sidw pbfl"
MAIL_PORT="587"
MAIL_ENCRYPTION="tls"
GRAPHER_BACKENDS="mrtg|smokeping"
GRAPHER_CACHE_ENABLED=true
GRAPHER_BACKEND_MRTG_DBTYPE="rrd"
GRAPHER_BACKEND_MRTG_WORKDIR="/srv/mrtg"
GRAPHER_BACKEND_MRTG_LOGDIR="/srv/mrtg"
GRAPHER_BACKEND_SMOKEPING_ENABLED=true
GRAPHER_BACKEND_SMOKEPING_URL="http://192.168.1.202/smokeping"
IXP_API_JSONEXPORTSCHEMA_PUBLIC=true
VIEW_SKIN="psix"
CACHE_DRIVER=memcached
DOCTRINE_PROXY_AUTOGENERATE=false
DOCTRINE_CACHE=memcached
DOCTRINE_CACHE_NAMESPACE=IXPMANAGERNAMESPACE
IXP_IRRDB_BGPQ3_PATH=/usr/bin/bgpq3
root at ixpmanager:/srv/ixpmanager#
15.
roroot at ixpmanager:/var/log/apache2# curl -v http://ixp.ps-ix.ps/lg/rs1-lan1-ipv4
* Trying 192.168.1.202:80...
* TCP_NODELAY set
* Connected to ixp.ps-ix.ps (192.168.1.202) port 80 (#0)
> GET /lg/rs1-lan1-ipv4 HTTP/1.1
> Host: ixp.ps-ix.ps
> User-Agent: curl/7.68.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 401 Unauthorized
< Date: Sat, 19 Sep 2020 01:31:25 GMT
< Server: Apache/2.4.41 (Ubuntu)
< Cache-Control: no-cache, private
< Set-Cookie: XSRF-TOKEN=eyJpdiI6IisrMVl0c1wvK25Yd2EzYXVVMXluaWhBPT0iLCJ2YWx1ZSI6IndVZHFadlhLK1BQa25FMEZWbnlyU0padjgyZVZIYXF0S2JxR0pDMTVvbVdZZWxtbUErR2xaV2hMQ0dMTEV0cEMiLCJtYWMiOiI3ZmNmNDU0MGUxNjkyZDA0NmYzODI4OTMzOGZlMzUxMTAwM2U4YTU5YzNiNDNiM2I4N2I5MTg2Y2VlNzRkZTIyIn0%3D; expires=Sat, 19-Sep-2020 03:31:26 GMT; Max-Age=7200; path=/
< Set-Cookie: laravel_session=eyJpdiI6IllNYjZ0VkxXMDlhWFFCZXVhamZmOHc9PSIsInZhbHVlIjoic2xoZ2RIcWVSMjcyS2hiMzAyUnkrZWRcL0hia3c4cllGbWlMb3diXC9CcUs3SVlpR2hVTUxVOVBPOUxxQVVMRXR3IiwibWFjIjoiM2NkNGJlOWRlYjNkOWI3ODBhZGIxNGYyZGRhYWExMzVkOGRlMmZjY2NlMzkzNjFlZmVjYWM2MjZjYzEyNTkxOCJ9; expires=Sat, 19-Sep-2020 03:31:26 GMT; Max-Age=7200; path=/; httponly
< Content-Length: 1558
< Content-Type: text/html; charset=UTF-8
<
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>Unauthorized</title>
<!-- Fonts -->
<link rel="dns-prefetch" href="//fonts.gstatic.com">
<link href="https://fonts.googleapis.com/css?family=Nunito" rel="stylesheet">
<!-- Styles -->
<style>
html, body {
background-color: #fff;
color: #636b6f;
font-family: 'Nunito', sans-serif;
font-weight: 100;
height: 100vh;
margin: 0;
}
.full-height {
height: 100vh;
}
.flex-center {
align-items: center;
display: flex;
justify-content: center;
}
.position-ref {
position: relative;
}
.code {
border-right: 2px solid;
font-size: 26px;
padding: 0 15px 0 15px;
text-align: center;
}
.message {
font-size: 18px;
text-align: center;
}
</style>
</head>
<body>
<div class="flex-center position-ref full-height">
<div class="code">
401 </div>
<div class="message" style="padding: 10px;">
Unauthorized </div>
</div>
</body>
</html>
* Connection #0 to host ixp.ps-ix.ps left intact
16.
Where is the problem ?
--
Eng.Basil Elbalaawi
QOS Department - Complaints Unit
bbalaawi at mtit.gov.ps
SecdepBasil at yahoo.com
Jawwal 0599409108
Wataniay 0562504972
