Hello guys,

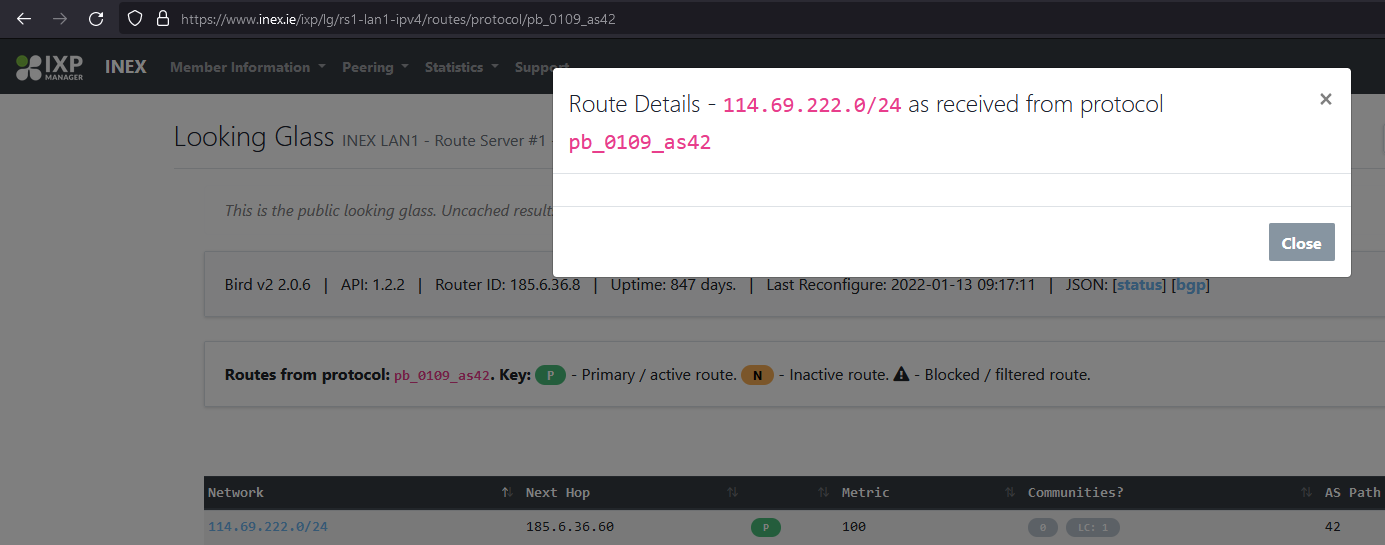

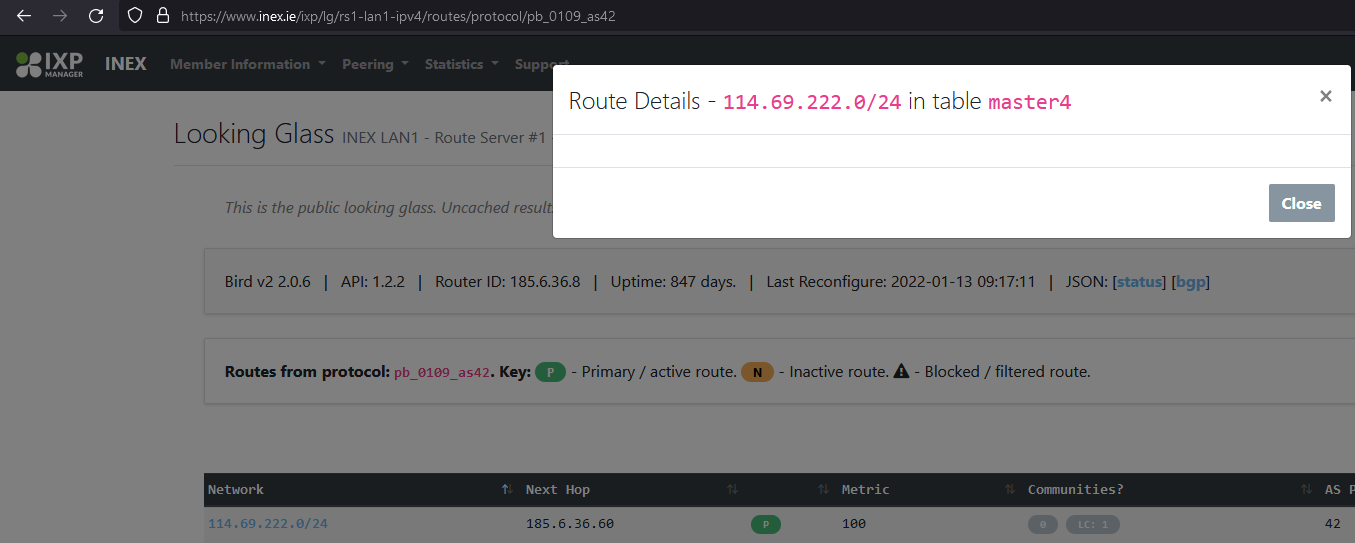

BTW the INEX Looking Glass has the same issue (see attached) So there is some general issue.

With kind regards, Aleksandr Belytskyi

NOC engineer
Speed Internet Exchange
Phone: +31(0)887378399
More: https://speed-ix.net/about-speed-ix/

----------------------------------------
From: "aleksandr at speed-ix.net" <aleksandr at speed-ix.net>
Sent: 11/01/2022 17:14
To: <ixpmanager at inex.ie>
Subject: Problem with Looking Glass

Hello guys,

First I'm wishing you a Healthy & Prosperous New Year 2022 ;)

We have a strange problem with our looking glass at SpeedIX.
The routers (Bird v2.0.7 ) and API of looking glasses (Bird's Eye V1.2.2) seems to be configured correctly.
We can receive JSON status and JSON BGP outputs and even we get tables with neighbor statuses and routing tables.
But if press the button "Details" or link on the network on the page with routes from protocol we receive a modal window with no info about the network.
See attached screenshot that was made on this page https://my.speed-ix.net/lg/rs1-ipv4/routes/protocol/pb_0338_as1101
The problem same with route search here https://my.speed-ix.net/lg/rs1-ipv4/route-search

I thought there are broken links to API as it expects network in URL encoded format but I see in the source code of IXP Manager that this is expected and the LookingGlass controller should fix it before requesting it to Bird's Eye API.
So far I have no clue what to check more.

Seems we faced this problem after the last upgrade from v6.0.1 to v6.1.0 and then to v6.2.0 (php_info attached)
Please advise what the problem can be. Thank you in advance.

With kind regards, Aleksandr Belytskyi

NOC engineer
Speed Internet Exchange
Phone: +31(0)887378399
More: https://speed-ix.net/about-speed-ix/
