[ixpmanager] Assistance Needed with looking glass - Birdseye

[Nick Hilliard]

Hi Faizan,

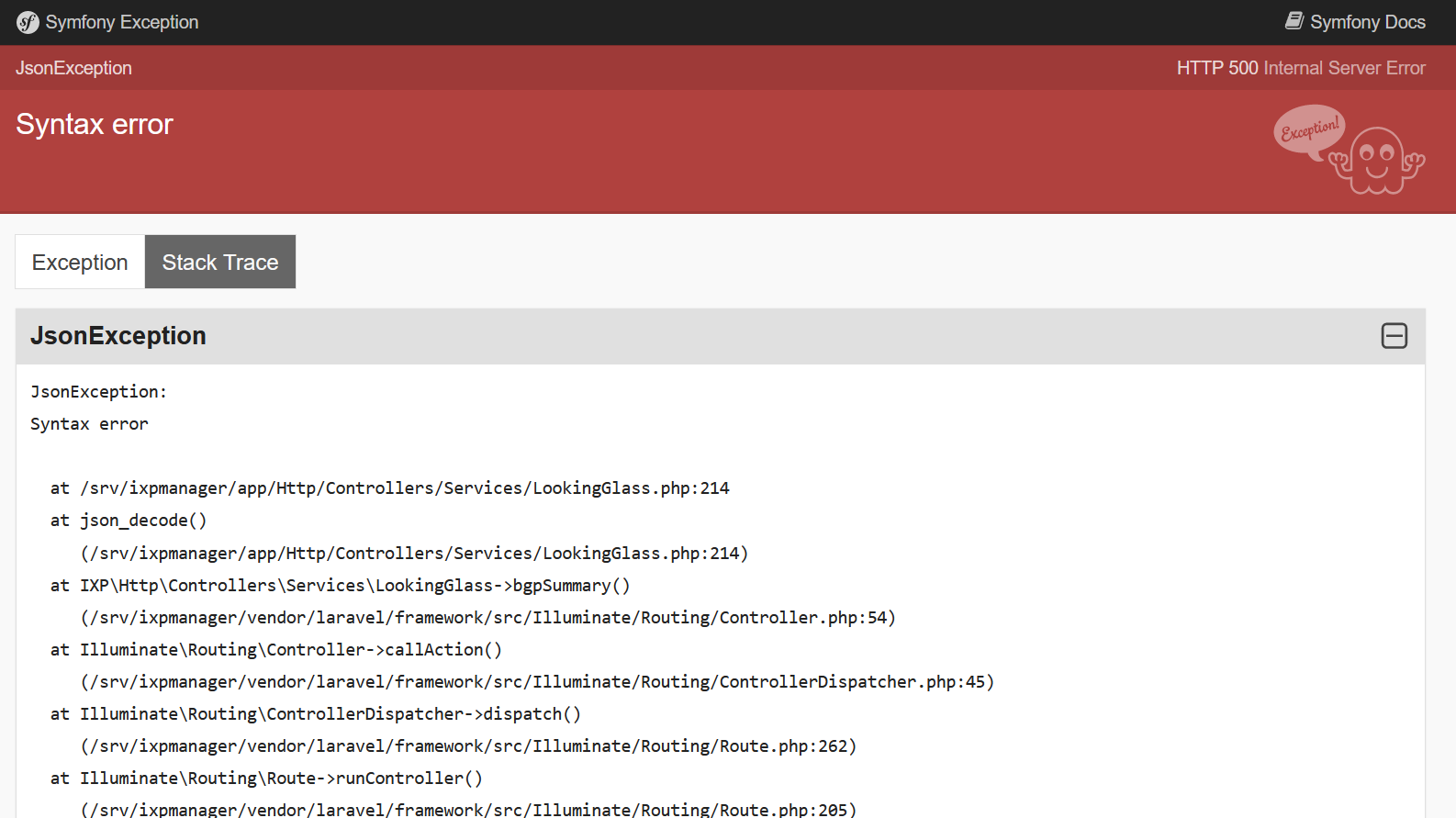

the LookingGlass->bgpSummary() method mentioned in the erorr log, loads
the /api/protocols/bgp URI. So if you can see this on curl, it means
that the LG installation is basically working.  Can you make sure that
the rs4-ipv4 hostname is in the DNS and then try reloading from the browser?

Nick

Faizan Barmare via ixpmanager wrote on 17/01/2024 07:09:
> Hi Nick
>
> Thanks for your reply.
>
> i have already share curl output in my previous email.  Below is
> output of same.
> .. at IXPManager-Prod1:~# curl -v http://rs4-ipv4/api/protocols/bgp
> *   Trying 10.100.200.22:80...
> * TCP_NODELAY set
> * Connected to rs4-ipv4 (10.100.200.22) port 80 (#0)
> > GET /api/protocols/bgp HTTP/1.1
> > Host: rs4-ipv4
> > User-Agent: curl/7.68.0
> > Accept: */*
> >
> * Mark bundle as not supporting multiuse
> < HTTP/1.1 200 OK
> < Cache-Control: no-cache
> < Content-Type: application/json
> < Date: Wed, 17 Jan 2024 06:33:04 GMT
> < Content-Length: 976
> < Server: lighttpd/1.4.55
> <
> * Connection #0 to host rs4-ipv4 left intact
> {"api":{"from_cache":false,"ttl_mins":2,"version":"1.2.2","max_routes":1000},"protocols":{"pb_0054_as
>
>
>
> I am not able to open url http://rs4-ipv4/ in browser.
> --
> Faizan Barmare.
>
>
>
>
> ------------------------------------------------------------------------
> *From:* Nick Hilliard <nick at foobar.org>
> *Sent:* Tuesday, January 16, 2024 5:17 AM
> *To:* INEX IXP Manager Users Mailing List <ixpmanager at inex.ie>
> *Cc:* Faizan Barmare <faizan1 at outlook.com>
> *Subject:* Re: [ixpmanager] Assistance Needed with looking glass -
> Birdseye
> Hi Faizan,
>
> What is the output of the following command:
>
> curl -vhttp://rs4-ipv4/api/protocols/bgp
>
> Nick
>
>
> Faizan Barmare via ixpmanager wrote on 15/01/2024 14:47:
>> Hi IXPmanager  Team,
>>
>> I'm currently experiencing difficulties getting the looking glass to
>> function in IXPmanager.
>> Our version is birdseye 1.2.2. And need help in fixing this.
>>
>>
>> check logs: -https://pastebin.com/raw/YW1G1SN1
>>
>>
>>
>> Error  log
>>
>>
>>
>>
>>
>>
>>
>> --
>> Best regards,
>> Faizan Barmare
>>
>>
>> _______________________________________________
>> INEX IXP Manager mailing list
>> ixpmanager at inex.ie <mailto:ixpmanager at inex.ie>
>> Unsubscribe or change options here:https://www.inex.ie/mailman/listinfo/ixpmanager
>
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> Unsubscribe or change options here: https://www.inex.ie/mailman/listinfo/ixpmanager

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20240129/1e25af1d/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 93763 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20240129/1e25af1d/attachment-0001.png>
