[ixpmanager] Allow a peer with the same AS number as the route-servers

Sun Apr 6 17:46:14 IST 2025

hello

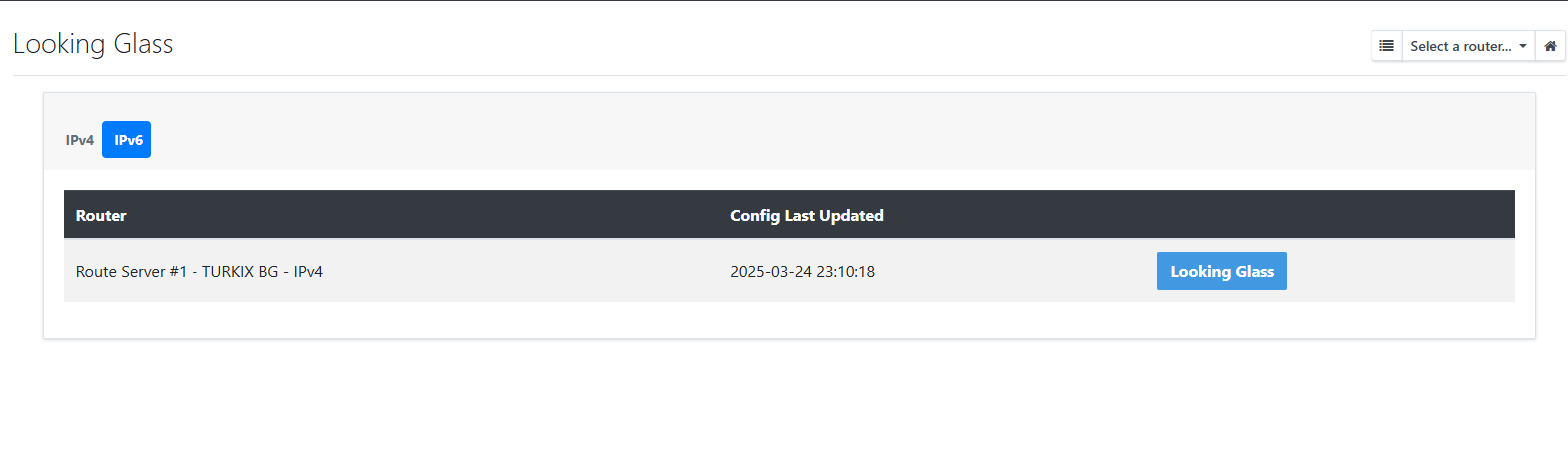

hover does not work in the latest version of the software. When I select
ipv4 ipv6, it remains the same. I tried to install from scratch and
still have the same problem.

---
TurkIX Communications Ltd

ozkan karakas

2025-04-05 12:42, Vladislav Bidikov via ixpmanager yazmış:

> Hi Barry,
>
> Your explanation really helps...
> Thank you... Now i definitely need to "find" another ASN for
> experimentation 🙂
>
> Thanks,
>
> --
> V.B
> FCC
>
> -------------------------
>
> From: ixpmanager <ixpmanager-bounces at inex.ie> on behalf of Barry
> O'Donovan (INEX) via ixpmanager <ixpmanager at inex.ie>
> Sent: Saturday, April 5, 2025 11:19 AM
> To: INEX IXP Manager Mailing List <ixpmanager at inex.ie>
> Cc: Barry O'Donovan (INEX) <barry.odonovan at inex.ie>
> Subject: Re: [ixpmanager] Allow a peer with the same AS number as the
> route-servers
>
> Hi Vladislav,
>
>> I plan so experiment with allowing some kind of "Remote IX" service
>> (basically a Bird router with legs on both IXP vlans and some
>> community rules) and seems i will run into the same issue that i need
>> to have a separate ASN from the ASN i already have allocated/sponsored
>> for IXP.mk route server...
>
> I'm not sure I understand the question and topology here to be honest
> Vladislav - perhaps more details would help?
>
> What I can say generally is that the IXP community as a whole has put
> many years of effort into defining route servers, designing secure
> route server configurations, and building up such trust amongst our
> members that many prefer to use route servers over bilateral sessions
> for general peering because of the security and stability they provide.
>
> Doing other things with your route servers and ASNs will run contrary
> to that work and established best current practices and possibly
> reflect badly on any IXP that strays from those expectations.  I.e.
> This isn't about being IXP Manager compatible - IXP Manager looks to
> teach and implement already established best practices.
>
> For me, there are some hard rules which include:
>
> * The route server ASN should be used only for the route server and
> nothing else.
> * Route servers should never route traffic.
>
> I'm not sure if that helps answer the question.
>
> - Barry
>
> Do I comprehend the RFC and your explanation correctly or I'm starting
> to get "old and sloppy" ...
> While here any good ideas on how to approach this and make it
> "ixpmanager compatible" ???
>
> Thanks from everyone in advance for ideas and help...
>
> --
> V.B
> FCC
>
> -------------------------
>
> From: ixpmanager <ixpmanager-bounces at inex.ie> on behalf of Barry
> O'Donovan (INEX) via ixpmanager <ixpmanager at inex.ie>
> Sent: Saturday, April 5, 2025 9:53 AM
> To: INEX IXP Manager Users Mailing List <ixpmanager at inex.ie>; INEX IXP
> Manager Mailing List <ixpmanager at inex.ie>
> Cc: Barry O'Donovan (INEX) <barry.odonovan at inex.ie>
> Subject: Re: [ixpmanager] Allow a peer with the same AS number as the
> route-servers
>
> Hi Tom,
>
> An ASN, among other things, defines a specific routing policy, and in
> the case of route servers, that's multilateral peering as defined by
> rfc7947.
>
> The route server configuration explicitly prevents the same peer ASN
> peering with them. This is very much on purpose.
>
> In your case, there'd be the additional issue of your routes
> potentially having no ASN or, inexplicitly and unexpectedly, having the
> route server ASN suddenly appear on your members' routing tables.
> Remember - route server ASNs are transparent.
>
> When I last looked, ASNs from LACNIC had a once-off allocation fee. The
> best thing to do here is to register a new ASN for the IXP's own
> management systems. This is what most IXPs do, including INEX.
>
> - Barry
>
> ------ Original Message ------
> From "Tom Lima via ixpmanager" <ixpmanager at inex.ie>
> To ixpmanager at inex.ie
> Cc "Tom Lima" <tom at infnoc.net>
> Date 05/04/2025 06:41:35
> Subject [ixpmanager] Allow a peer with the same AS number as the
> route-servers
>
> Hello everyone,
>
> I would like to know how I can modify/add so I can allow a peer with
> the same ASN as the route server ASNs.
>
> Reason is our IXP doesn't have separate ASNs for management and
> Route-Servers, and I need to announce the ASN other prefixes that
> provides a few tools to the users (Looking Glass, Graphs, etc).
>
> We do have a /23 prefix, which a /24 is allocated to the IXP Exchange
> VLAN, and the other /24 is for management purposes. We do need to
> announce that /24 management address using the same ASN that run the
> route-server service.
>
> I tried adding a Internal User and Peer with the AS, but
> IXPManager/Bird doesn't create the BGP sessions for that peer.
>
> Let me know what I need to edit to allow this behavior.
>
> Best regards
>
> --
>
> Tom Lima
> Network Engineeer Consultant
>
> tom at infnoc.net
> WhatsApp: +55 (41) 2018-2165
>
> [1]
> [2]
> [3]
>
> www.infnoc.net [4]
>
> -------------------------
>
> Essa mensagem pode conter conteúdo confidencial, não copie ou divulgue
> o conteúdo.
>
> Este mensaje puede contener contenido confidencial, no copie ni
> divulgue el contenido.
>
> This message may contain confidential content, do not copy or disclose
> the content.
