[ixpmanager] Graph MRTG Sub Interface IXP Manager

Fri Sep 4 18:26:59 IST 2020

Dear Nick,

Yep its does.

--
Regards,

Hersan Yudhaprana Firman
Internet Network Engineer
---------------------------------------------------------------
PT. Supra Primatama Nusantara (Biznet)
MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
Jakarta 10220 - Indonesia.
Phone: +62-21-57998888 Fax: +62-21-5700580
Call Biznet: 1500988 Web: www.biznetnetworks.com.
---------------------------------------------------------------
Biznet is an integrated digital infrastructure company in Indonesia, providing Internet, Data Center, Cloud Computing and IPTV services. We have a strong commitment to build modern infrastructure to reduce digital gap between Indonesia and other developing countries. Biznet has been operating thousands of KM state of the art Fiber Optic Network and the largest data center in Indonesia since 2000.

Biznet Internet + IPTV services are available in 110+ cities in Java, Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit http://www.biznetnetworks.com/fiber for complete city list.

Biznet GIO Cloud is The Newest Generation of Cloud Computing Service, please visit www.biznetgiocloud.com for details.

This message including any attachments, is intended only for the person authorized to receive it, therefore the recipient must maintain the confidentiality of this information in accordance with the provisions and / or policies of PT. Supra Primatama Nusantara (Biznet). If you are not the person authorized to receive this message then you must remove from your system and destroy all material or information derived from this information together with all copies and immediately notify the sender. Please note also that any disclosure, copy, distribute and / or other actions based on this information is prohibited and may violate the rule of law.

On 04/09/2020 23:49, Nick Hilliard (INEX) wrote:
> Does the subinterface appear when you run snmpwalk on that switch:
>
> snmpwalk -v 2c -c COMMUNITYSWITCHIPADDRESS .1.3.6.1.2.1.2.2.1.2
>
> Nick
>
>> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
>> 4 September 2020 at 16:27
>> Dear Nick,
>>
>> Still the same, sub interface still not appear. I already tried cisco
>> and huawei router, the result is same.
>>
>> --
>> Regards,
>>
>> Hersan Yudhaprana Firman
>> Internet Network Engineer
>> ---------------------------------------------------------------
>> PT. Supra Primatama Nusantara (Biznet)
>> MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
>> Jakarta 10220 - Indonesia.
>> Phone: +62-21-57998888 Fax: +62-21-5700580
>> Call Biznet: 1500988 Web: www.biznetnetworks.com.
>> ---------------------------------------------------------------
>> Biznet is an integrated digital infrastructure company in Indonesia,
>> providing Internet, Data Center, Cloud Computing and IPTV services.
>> We have a strong commitment to build modern infrastructure to reduce
>> digital gap between Indonesia and other developing countries. Biznet
>> has been operating thousands of KM state of the art Fiber Optic
>> Network and the largest data center in Indonesia since 2000.
>>
>> Biznet Internet + IPTV services are available in 110+ cities in Java,
>> Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit
>> http://www.biznetnetworks.com/fiber for complete city list.
>>
>> Biznet GIO Cloud is The Newest Generation of Cloud Computing Service,
>> please visit www.biznetgiocloud.com for details.
>>
>> This message including any attachments, is intended only for the
>> person authorized to receive it, therefore the recipient must
>> maintain the confidentiality of this information in accordance with
>> the provisions and / or policies of PT. Supra Primatama Nusantara
>> (Biznet). If you are not the person authorized to receive this
>> message then you must remove from your system and destroy all
>> material or information derived from this information together with
>> all copies and immediately notify the sender. Please note also that
>> any disclosure, copy, distribute and / or other actions based on this
>> information is prohibited and may violate the rule of law.
>> On 04/09/2020 18:16, Nick Hilliard (INEX) wrote:
>>
>> Nick Hilliard (INEX) <mailto:nick at inex.ie>
>> 4 September 2020 at 12:16

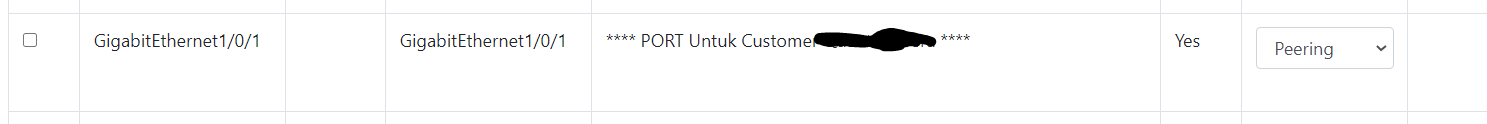

>> Can you head over to the /switch/list URI, then use the SNMP Actions
>> | "View / Edit Ports" action to refresh the list of ports on the device?
>>
>> Once you're in the port list, make sure that the subinterface port is
>> present and that it's set to be Type: Peering
>>
>> e.g. like this:
>>
>>
>>
>> Nick
>>
>>
>>
>>
>> _______________________________________________
>> INEX IXP Manager mailing list
>> ixpmanager at inex.ie
>> Unsubscribe or change options here:
>> https://www.inex.ie/mailman/listinfo/ixpmanager
>> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
>> 4 September 2020 at 11:13
>> Hi Nick,
>>
>> Where drop-down sub interface will appear? im already try your advice
>> but sub interface still not there.
>>
>>
>> --
>> Regards,
>>
>> Hersan Yudhaprana Firman
>> Internet Network Engineer
>> ---------------------------------------------------------------
>> PT. Supra Primatama Nusantara (Biznet)
>> MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
>> Jakarta 10220 - Indonesia.
>> Phone: +62-21-57998888 Fax: +62-21-5700580
>> Call Biznet: 1500988 Web: www.biznetnetworks.com.
>> ---------------------------------------------------------------
>> Biznet is an integrated digital infrastructure company in Indonesia,
>> providing Internet, Data Center, Cloud Computing and IPTV services.
>> We have a strong commitment to build modern infrastructure to reduce
>> digital gap between Indonesia and other developing countries. Biznet
>> has been operating thousands of KM state of the art Fiber Optic
>> Network and the largest data center in Indonesia since 2000.
>>
>> Biznet Internet + IPTV services are available in 110+ cities in Java,
>> Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit
>> http://www.biznetnetworks.com/fiber for complete city list.
>>
>> Biznet GIO Cloud is The Newest Generation of Cloud Computing Service,
>> please visit www.biznetgiocloud.com for details.
>>
>> This message including any attachments, is intended only for the
>> person authorized to receive it, therefore the recipient must
>> maintain the confidentiality of this information in accordance with
>> the provisions and / or policies of PT. Supra Primatama Nusantara
>> (Biznet). If you are not the person authorized to receive this
>> message then you must remove from your system and destroy all
>> material or information derived from this information together with
>> all copies and immediately notify the sender. Please note also that
>> any disclosure, copy, distribute and / or other actions based on this
>> information is prohibited and may violate the rule of law.
>> On 04/09/2020 16:55, Nick Hilliard (INEX) wrote:
>>
>> Nick Hilliard (INEX) <mailto:nick at inex.ie>
>> 4 September 2020 at 10:55
>>
>>
>> Hi Hersan
>>
>> If the customer is connected to a subinterface with a name (e.g.
>> GigabitEthernet1/10.100), and if IXP Manager is correctly configured
>> with switch interface polling, then this interface name should
>> already appear in the list of ports on the switch.  If it's there,
>> you'll need to change the port type from "Unknown / Unset" to
>> "Peering", and once you do this, it will appear in the drop-down list
>> of ports available for customers.
>>
>> Nick
>> _______________________________________________
>> INEX IXP Manager mailing list
>> ixpmanager at inex.ie
>> Unsubscribe or change options here:
>> https://www.inex.ie/mailman/listinfo/ixpmanager
>> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
>> 4 September 2020 at 10:30
>> Dear Support,
>>
>> I have case our customer using NNI Port to our router, with 2
>> different services. How i can graph sub interface at ixp manager? By
>> default only port and LAG appear.
>>
>> ------------------------------------------------------------------------
>
