[ixpmanager] Graph MRTG Sub Interface IXP Manager

Fri Sep 4 21:49:41 IST 2020

Ok. Can you run from the IXP Manager directory:

% ./artisan switch:snmp-poll
% systemctl restart memcached.service

Then check if the interface appears in "View / Edit Ports" in either the
Database Actions or the SNMP Actions in
https://bix.biznetnetworks.com/switch/list ?

If it doesn't appear, can you run:

snmpwalk -v 2c -c COMMUNITY SWITCHIPADDRESS .1.3.6.1.2.1.2.2.1.1
snmpwalk -v 2c -c COMMUNITY SWITCHIPADDRESS .1.3.6.1.2.1.2.2.1.2
snmpwalk -v 2c -c COMMUNITY SWITCHIPADDRESS .1.3.6.1.2.1.2.2.1.3

and post the output on pastebin.ibn.ie?

Nick
> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
> 4 September 2020 at 18:26
> Dear Nick,
>
> Yep its does.
>
>
>
> --
> Regards,
>
> Hersan Yudhaprana Firman
> Internet Network Engineer
> ---------------------------------------------------------------
> PT. Supra Primatama Nusantara (Biznet)
> MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
> Jakarta 10220 - Indonesia.
> Phone: +62-21-57998888 Fax: +62-21-5700580
> Call Biznet: 1500988 Web: www.biznetnetworks.com.
> ---------------------------------------------------------------
> Biznet is an integrated digital infrastructure company in Indonesia,
> providing Internet, Data Center, Cloud Computing and IPTV services. We
> have a strong commitment to build modern infrastructure to reduce
> digital gap between Indonesia and other developing countries. Biznet
> has been operating thousands of KM state of the art Fiber Optic
> Network and the largest data center in Indonesia since 2000.
>
> Biznet Internet + IPTV services are available in 110+ cities in Java,
> Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit
> http://www.biznetnetworks.com/fiber for complete city list.
>
> Biznet GIO Cloud is The Newest Generation of Cloud Computing Service,
> please visit www.biznetgiocloud.com for details.
>
> This message including any attachments, is intended only for the
> person authorized to receive it, therefore the recipient must maintain
> the confidentiality of this information in accordance with the
> provisions and / or policies of PT. Supra Primatama Nusantara
> (Biznet). If you are not the person authorized to receive this message
> then you must remove from your system and destroy all material or
> information derived from this information together with all copies and
> immediately notify the sender. Please note also that any disclosure,
> copy, distribute and / or other actions based on this information is
> prohibited and may violate the rule of law.
> On 04/09/2020 23:49, Nick Hilliard (INEX) wrote:
>
> Nick Hilliard (INEX) <mailto:nick at inex.ie>
> 4 September 2020 at 17:49
> Does the subinterface appear when you run snmpwalk on that switch:
>
> snmpwalk -v 2c -c COMMUNITYSWITCHIPADDRESS  .1.3.6.1.2.1.2.2.1.2
>
> Nick
>
>
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> Unsubscribe or change options here:
> https://www.inex.ie/mailman/listinfo/ixpmanager
> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
> 4 September 2020 at 16:27
> Dear Nick,
>
> Still the same, sub interface still not appear. I already tried cisco
> and huawei router, the result is same.
>
> --
> Regards,
>
> Hersan Yudhaprana Firman
> Internet Network Engineer
> ---------------------------------------------------------------
> PT. Supra Primatama Nusantara (Biznet)
> MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
> Jakarta 10220 - Indonesia.
> Phone: +62-21-57998888 Fax: +62-21-5700580
> Call Biznet: 1500988 Web: www.biznetnetworks.com.
> ---------------------------------------------------------------
> Biznet is an integrated digital infrastructure company in Indonesia,
> providing Internet, Data Center, Cloud Computing and IPTV services. We
> have a strong commitment to build modern infrastructure to reduce
> digital gap between Indonesia and other developing countries. Biznet
> has been operating thousands of KM state of the art Fiber Optic
> Network and the largest data center in Indonesia since 2000.
>
> Biznet Internet + IPTV services are available in 110+ cities in Java,
> Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit
> http://www.biznetnetworks.com/fiber for complete city list.
>
> Biznet GIO Cloud is The Newest Generation of Cloud Computing Service,
> please visit www.biznetgiocloud.com for details.
>
> This message including any attachments, is intended only for the
> person authorized to receive it, therefore the recipient must maintain
> the confidentiality of this information in accordance with the
> provisions and / or policies of PT. Supra Primatama Nusantara
> (Biznet). If you are not the person authorized to receive this message
> then you must remove from your system and destroy all material or
> information derived from this information together with all copies and
> immediately notify the sender. Please note also that any disclosure,
> copy, distribute and / or other actions based on this information is
> prohibited and may violate the rule of law.
> On 04/09/2020 18:16, Nick Hilliard (INEX) wrote:
>
> Nick Hilliard (INEX) <mailto:nick at inex.ie>
> 4 September 2020 at 12:16
> Can you head over to the /switch/list URI, then use the SNMP Actions |
> "View / Edit Ports" action to refresh the list of ports on the device?
>

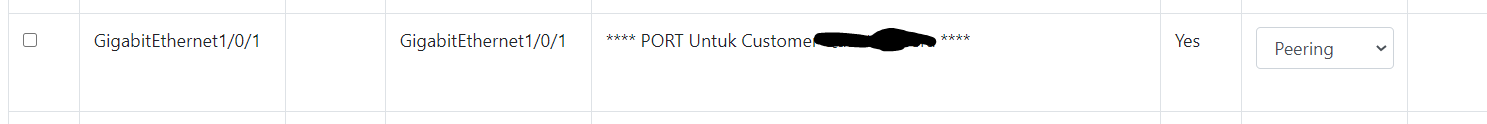

> Once you're in the port list, make sure that the subinterface port is
> present and that it's set to be Type: Peering
>

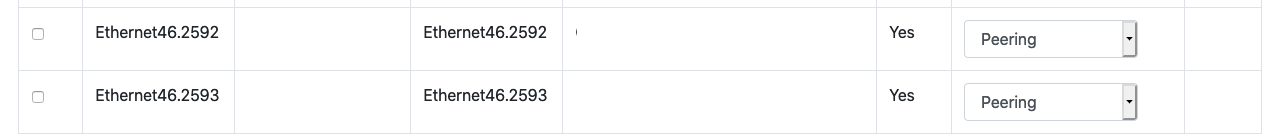

> e.g. like this:
>
>
>
> Nick
>
>
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> Unsubscribe or change options here:
> https://www.inex.ie/mailman/listinfo/ixpmanager
> Hersan Yudhaprana <mailto:hersan_firman at biznetnetworks.com>
> 4 September 2020 at 11:13
> Hi Nick,
>

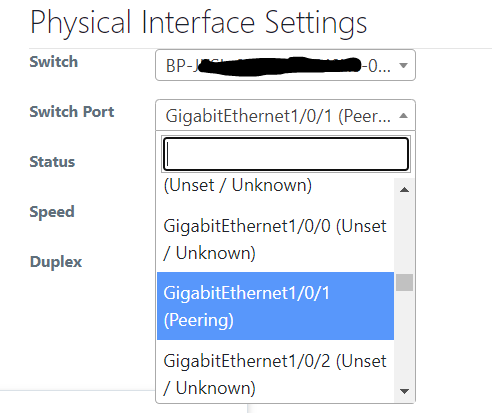

> Where drop-down sub interface will appear? im already try your advice
> but sub interface still not there.
>
>
> --
> Regards,
>
> Hersan Yudhaprana Firman
> Internet Network Engineer
> ---------------------------------------------------------------
> PT. Supra Primatama Nusantara (Biznet)
> MidPlaza 2, 8th Floor. Jl. Jend. Sudirman Kav 10-11.
> Jakarta 10220 - Indonesia.
> Phone: +62-21-57998888 Fax: +62-21-5700580
> Call Biznet: 1500988 Web: www.biznetnetworks.com.
> ---------------------------------------------------------------
> Biznet is an integrated digital infrastructure company in Indonesia,
> providing Internet, Data Center, Cloud Computing and IPTV services. We
> have a strong commitment to build modern infrastructure to reduce
> digital gap between Indonesia and other developing countries. Biznet
> has been operating thousands of KM state of the art Fiber Optic
> Network and the largest data center in Indonesia since 2000.
>
> Biznet Internet + IPTV services are available in 110+ cities in Java,
> Bali, Sumatra, Batam, Kalimantan and Sulawesi islands, please visit
> http://www.biznetnetworks.com/fiber for complete city list.
>
> Biznet GIO Cloud is The Newest Generation of Cloud Computing Service,
> please visit www.biznetgiocloud.com for details.
>
> This message including any attachments, is intended only for the
> person authorized to receive it, therefore the recipient must maintain
> the confidentiality of this information in accordance with the
> provisions and / or policies of PT. Supra Primatama Nusantara
> (Biznet). If you are not the person authorized to receive this message
> then you must remove from your system and destroy all material or
> information derived from this information together with all copies and
> immediately notify the sender. Please note also that any disclosure,
> copy, distribute and / or other actions based on this information is
> prohibited and may violate the rule of law.
> On 04/09/2020 16:55, Nick Hilliard (INEX) wrote:
>
