[ixpmanager] Aggregated Traffic somehow can't pass 20G even though the total ports for the member is 40G

[Earl Tan]

Good Day to All!

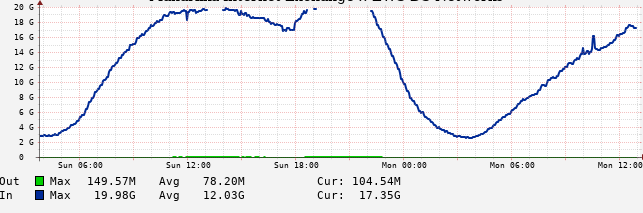

We have observed that the traffic cannot exceed 20G, even though the actual
traffic volume is 29G. ( we noticed only last week. )
[image: image.png]

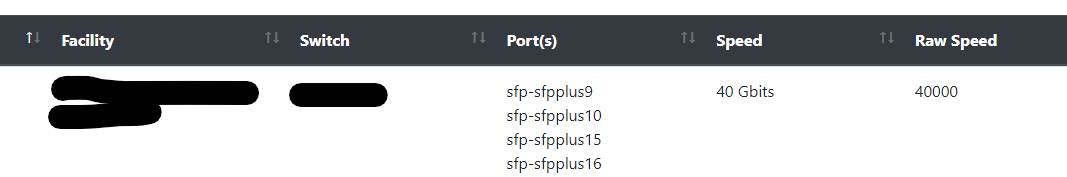

The Ports in total are 40G, the config file for MRTG seems ok to me.
[image: image.png]

MRTG Config File for that member -->
https://pastebin.ibn.ie/?1f4e1b93bc6cb11b#AGdRwz1Ygu6WpV8pcvhmFpKg7yuuiXkyhYv5tfGou8WK
(
mrtg.cfg )

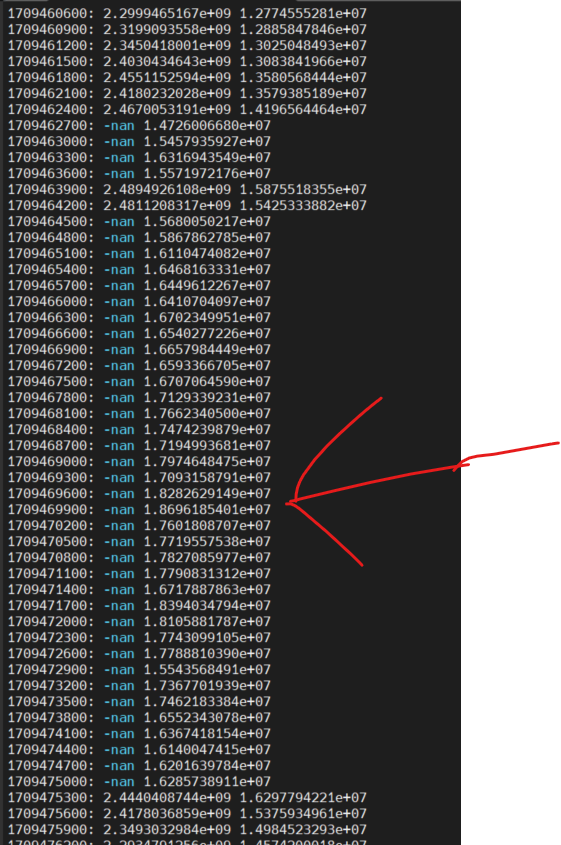

The RRD data appears as "NaN" for the periods that were blank. I don't know
why.
[image: image.png]

I can't seem to find the problem as to why it is "somehow / like" limiting
it to a specific threshold like 20G. All individual ports seems to be fine
( each 6G-7G )

Server's Versions:
OS: Ubuntu 20.04.6 LTS
PHP: PHP 8.0.28
IXP Version: 6.3.0 ( 2022110200 )

Best Regards,

<https://aftechph.com>

Earlvin Tan

Software Developer

AFTECH

earl at aftechph.com

aftechph.com
